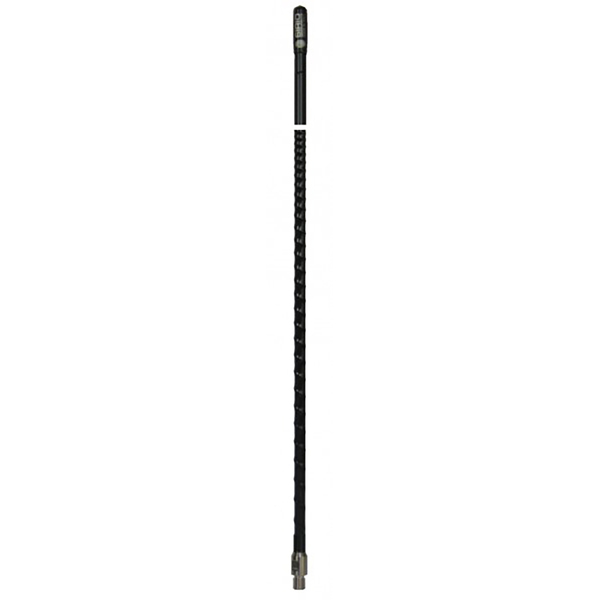

SIRIO FLEX LOG 3 CB Mobilantennenstrahler
Art.-Nr.: 378
Lagerverfügbarkeit:
verfügbar
Produkte, die auf Lager sind, werden in der Regel noch am selben Tag versandt (Lieferzeit 1-3 Werktage) bei Bestellung vor 12 Uhr. Nicht lagernde Produkte werden für Sie bestellt oder befinden sich im Zulauf (Lieferzeit 3-7 Werktage).
Preis: 24,95 €
Alle Preise inkl. gesetzlich MwSt. und in Euro und ggf. zzgl. Versandkosten. Einzelheiten zu den Versandkosten finden Sie hier
CB Funk Einzelstrahler aus flexiblem Glasfiber um 180 Grad biegsam mit 3/8 Anschluss
Technische Daten
Features:
– CB Mobile antennas
– Overall Height: 3´, 4´ / 88cm, 126 cm
– Exclusive Logarithmic pitch winding to reduce heat and hot-spot loss (Patent Pending)
– Flexible fiberglass rod (Ø1/4" / 7mm)
– Tunable by the top element
– Real input power guaranteed
– Fully Designed & Manufactured in Italy
Electrical Data:
– Type: Ø0.63mm AWG-22 single wire winding Logarithmic loaded
– Frequency range: 26.9 … 27.5 MHz
– Bandwidth @ SWR ≤ 2:
FLEX-LOG 3: ≥ 600 KHz (55 channel)
FLEX-LOG 4: ≥ 1000 KHz (90 channel)
– Max. power:
FLEX-LOG 3: 100 Watts (CW) continuous, 300 Watts (CW) short time
FLEX-LOG 4: 250 Watts (CW) continuous, 750 Watts (CW) short time
– Connection: 3/8×24 threads male
Mechanical Data:
– Materials: Fiberglass, Copper, Nylon, Stainless Steel
– Height (approx.):
FLEX-LOG 3: 900 mm / 3 ft
FLEX-LOG 4: 1260 mm / 4.1 ft
– Weight (approx.):
FLEX-LOG 3: 0.135 Kg / 0.3 lb
FLEX-LOG 4: 0.175 Kg / 0.4 lb
Technische Daten
| Typ | |
| Frequenz | |
| Max. Leistung | |
| Material | |
| Anschluss | |
| Länge |
– CB Mobile antennas
– Overall Height: 3´, 4´ / 88cm, 126 cm
– Exclusive Logarithmic pitch winding to reduce heat and hot-spot loss (Patent Pending)
– Flexible fiberglass rod (Ø1/4" / 7mm)
– Tunable by the top element
– Real input power guaranteed
– Fully Designed & Manufactured in Italy
Electrical Data:
– Type: Ø0.63mm AWG-22 single wire winding Logarithmic loaded
– Frequency range: 26.9 … 27.5 MHz
– Bandwidth @ SWR ≤ 2:
FLEX-LOG 3: ≥ 600 KHz (55 channel)
FLEX-LOG 4: ≥ 1000 KHz (90 channel)
– Max. power:
FLEX-LOG 3: 100 Watts (CW) continuous, 300 Watts (CW) short time
FLEX-LOG 4: 250 Watts (CW) continuous, 750 Watts (CW) short time
– Connection: 3/8×24 threads male
Mechanical Data:
– Materials: Fiberglass, Copper, Nylon, Stainless Steel
– Height (approx.):
FLEX-LOG 3: 900 mm / 3 ft
FLEX-LOG 4: 1260 mm / 4.1 ft
– Weight (approx.):
FLEX-LOG 3: 0.135 Kg / 0.3 lb
FLEX-LOG 4: 0.175 Kg / 0.4 lb
